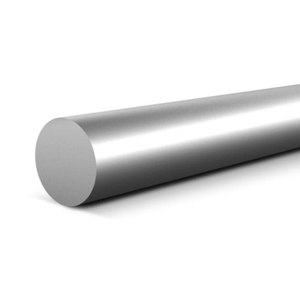

Stainless Steel Round Bar 2205 is a round shaped 2205 Stainless Steel Alloy bar.
2205 Stainless Steel Alloy is also know as a Duplex stainless steel is an extremely corrosion resistant, work hardenable alloy.
Their microstructures consist of a mixture of austenite and ferrite phases. As a result, duplex stainless steels display properties characteristic of both austenitic and ferritic stainless steels. This combination of properties can mean some compromise when compared with pure austenitic and pure ferritic grades.
Chemical Composition
1.4462 Steel
Chemical Element | % Present |
Carbon (C) | 0.0 - 0.03 |
Chromium (Cr) | 21.00 - 23.00 |
Manganese (Mn) | 0.0 - 2.00 |
Silicon (Si) | 0.0 - 1.00 |
Phosphorous (P) | 0.0 - 0.03 |
Sulphur (S) | 0.0 - 0.02 |
Nickel (Ni) | 4.50 - 6.50 |
Nitrogen (N) | 0.10 - 0.22 |
Molybdenum (Mo) | 2.50 - 3.50 |
Iron (Fe) | Balance |
Properties
Physical Property | Value |
Density | 7.805 g/cm³ |
Thermal Expansion | 13.7 x10^-6 /K |
Modulus of Elasticity | 200 GPa |
Thermal Conductivity | 19.0 W/m.K |
Electrical Resistivity | 0.85 x10^-6 Ω .m |
Bar - Up to 160mm Dia / Thickness
Mechanical Property | Value |
Proof Stress | 450 Min MPa |
Tensile Strength | 650 to 880 MPa |
Elongation A50 mm | 25 Min % |
Hardness Brinell | 270 Max HB |
Our Services
We can cut and bend steel plate according to customer's requriement or drawing,
packaging according to customers' request.
Application
By adopting the combined chemical composition design of low carbon,low sulfur, low phosphorous and micro-alloy, by applying the offline quenching and other advanced automation technologies, our wear resistant(Abrasion Resisant) plate are popular at home and abroad. Mainly used for thermal Power plant, Coal Mines, Cement Mills, Loading Machinery, Mining Machinery,Project Machinery.Metallurgical Machinery, Wear resistant plate also can be applied in Sand Mill Cylindrical Shell, Vane, Mechanical Parts used in yard and port, Bearing Structure Parts etc.
