| Availability: | |
|---|---|
| Quantity: | |

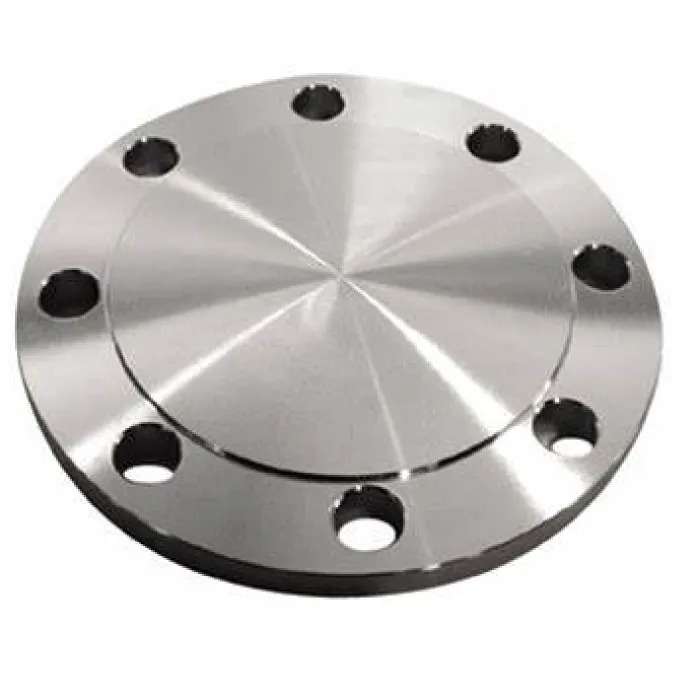

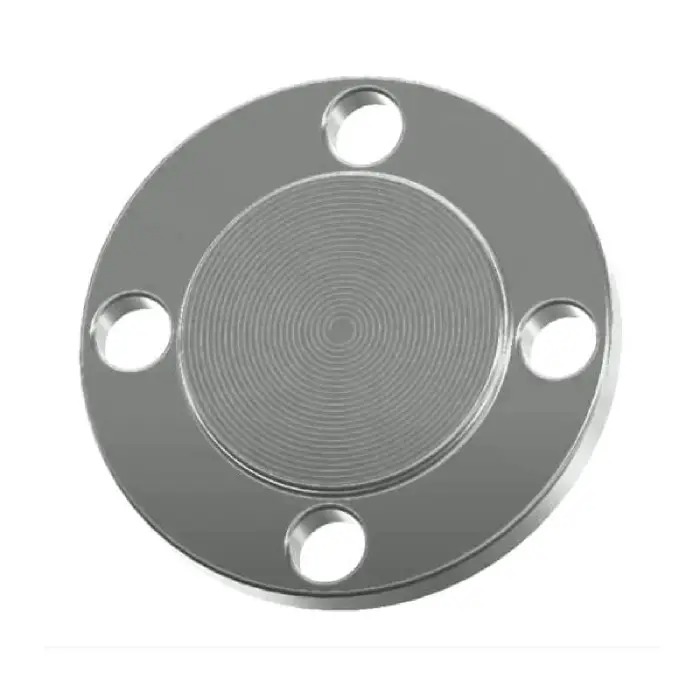

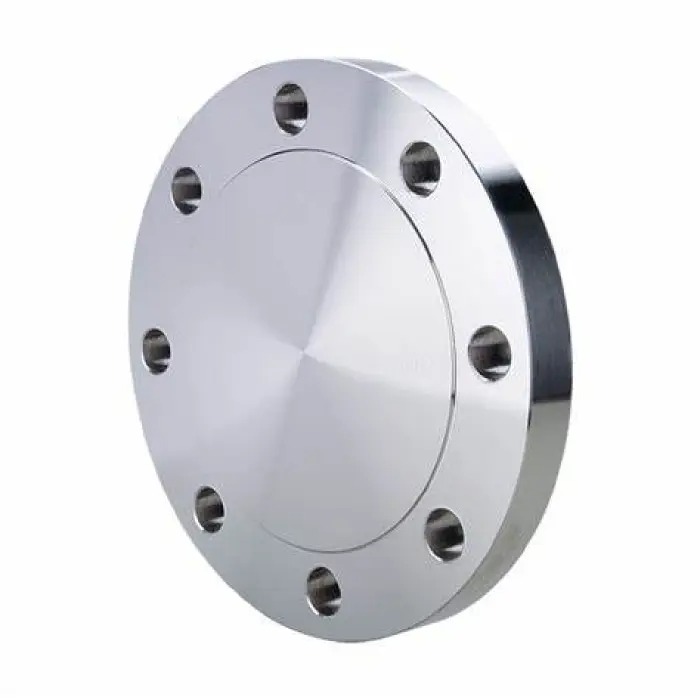

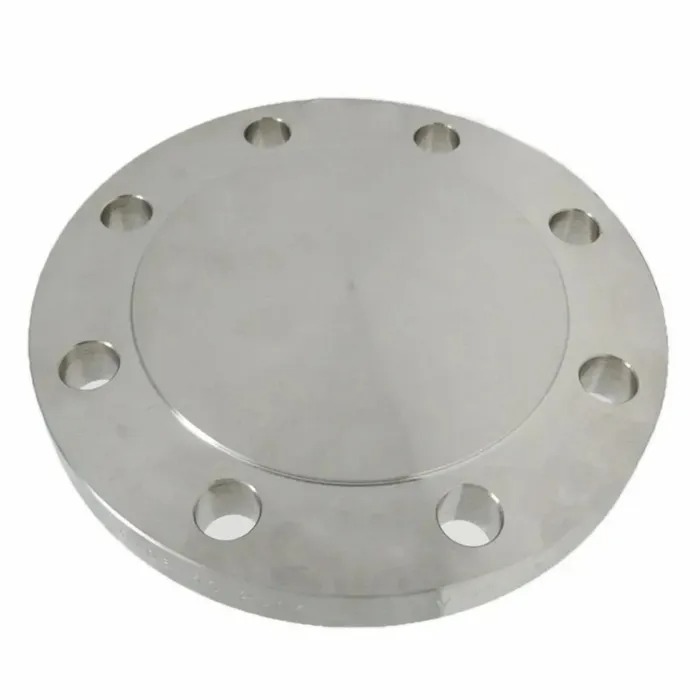

A blind flange is a crucial component in piping systems, playing a vital role in various industrial applications. Essentially, it is a type of flange with no central opening, which is used to close the end of a pipe. Blind flanges are primarily made from materials such as carbon steel, stainless steel, alloy steel, and sometimes even non - metallic materials like plastic or rubber, depending on the specific requirements of the application. Carbon steel blind flanges are widely used due to their cost - effectiveness and good mechanical properties in general industrial environments.
Stainless steel blind flanges, on the other hand, are favored in corrosive environments, such as in the chemical and petrochemical industries, where resistance to rust and chemical attack is essential. The design of a blind flange is relatively simple yet highly functional. It has bolt holes evenly distributed around its circumference, which allow it to be bolted onto the end of a pipe using bolts and gaskets. The gasket is placed between the blind flange and the pipe flange to create a tight seal, preventing the leakage of fluids or gases. The thickness of the blind flange is determined by factors such as the pressure rating of the piping system, the diameter of the pipe, and the material properties. Higher - pressure systems require thicker blind flanges to ensure structural integrity and maintain the seal.
In terms of applications, blind flanges are used in a wide range of industries. In the oil and gas industry, they are employed to isolate sections of pipelines during maintenance, repair, or testing operations. For example, when a particular part of a pipeline needs to be shut down for inspection, a blind flange can be installed to block the flow of oil or gas, ensuring the safety of the workers and preventing any unwanted leakage. In the power generation industry, blind flanges are used in steam piping systems to provide a means of closing off pipes when necessary, such as during equipment installation or modification.
Specifications
| Type | WN THREAD BL SW LJ |
| Size | DN15-DN2000 |
| Color | Silver |
| Standard | ASTM B16.5 |
| Surface | Mirror polish,Matt finish, sand-blasting |
| Usage | Oil Gas Water Industrial |
| Application | Petroleum, Natrual Gas, Water Disposa etc. |
| Process | forged |
| Single package size | 15X10X2 cm |
| Single gross weight | 2.000 kg |
Applications
Blind flanges are widely used in piping systems. In petrochemical plants, they are employed to seal the ends of pipelines during maintenance or when a section needs to be isolated, preventing leakage of fluids or gases. In power plants, they are used in systems for boilers and condensers to close off unused connections. They are also crucial in the construction of offshore platforms to ensure the integrity of the piping network.
Advantages
Blind flanges offer several advantages. Firstly, they provide a reliable seal, ensuring that no fluid or gas escapes from the pipeline, enhancing safety. Secondly, they are easy to install and remove, facilitating quick maintenance and modification of piping systems. Additionally, they are cost - effective as they can be reused multiple times. Their versatility in various industrial applications makes them an indispensable component in piping infrastructure.
